yesallevent We spent many hours on research to finding ao smith motors wiring, reading product features, product specifications for this guide. For those of you who wish to the best ao smith motors wiring, you should not miss this article. ao smith motors wiring coming in a variety of types but also different price range. The following is the top 10 ao smith motors wiring by our suggestions
750 reviews analysed

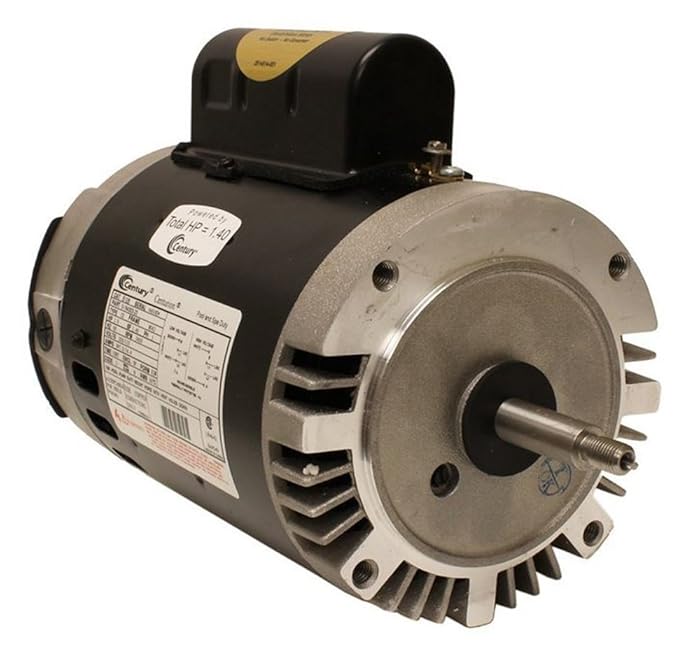

A.O. Smith Century B128 Full Rate 1HP 3450RPM C-Face Pool Pump Motor Replacement
- Full-rated 1-horsepower 3,450 RPM C-face 56J frame replacement pool pump motor
- For use with above-ground and in-ground swimming pools
- Part Number: B128
- 115/230-volt power
- open drip-proof housing ensures cooler operation and extends the life of your motor
- Compatible pumps include: Jandy and Marlow
1/4HP 115 Volt 1625RPM 2 speed Coleman (6757B311) RV Air Conditioner Motor AO Smith # ORV4538
Dimensions ref. (1) C = 20-1/8″, BM = 3-5/8″, N1 = 5-3/8″, N = 5-3/8″. This is an aftermarket replacement motor. Be sure to review the specs and dimensions to your motor to verify it will work. This has also been used for 6757A313, 6757A311, K55HXJCP-2593, 322P708
A.O. Smith UST1072 3/4 HP, 3450 RPM, 1 Service Factor, 56J Frame, Capacitor Start, ODP Enclosure, C-Face Pool Motor
Pool motor, 50-Degree C ambient temperature, 303 stainless steel threaded shaft.
A.O. Smith 5 5/8 Inch Diameter Motor 208-230 Volts 1075 RPM
- A.O. Smith’s expanded line 4-in-1 motors replace hundreds of the most popular 1/3, 1/4, 1/6, 1/8
- HP, 48-frame condenser fan motors currently installed with “one simple connection.”
- No capacitors to switch or complicated wiring diagrams to follow.
- 4-in-1 motors energy-efficient PSC designs, are rated for 1/3-1/8 HP, 208-230 Volt, 825 and 1075 RPM
- Construction and are available in all angle sleeve bearing or rugged ball
This Item ReplacesRheem 51-20668-11Rheem 51-23055-11Emerson K55HXTDD-8385
1 hp 3450 RPM 48Y Frame 115V Pool & Spa Electric Motor Century # BN25V1
Stainless Steel Shaft. Above ground swimming pool and spa motors. These are called Thru-Bolt mount motors as the pump mounts to the face of the motor with the motor thru bolts. 48Y frame motors thru bolt dimension is 5 1/8″ on center measured across the shaft. Shaft is 1/2″ diameter with threads on end. Motor has flat-rigid base welded to motor case. Wiring connection diagram on motor name plate. These motors are found on the Hayward Powerflo, Waterway, Aquaflo, Dynamo and many other above ground pool and spa pumps. 1 Year Manufacture Warranty. Replaces BN25, BN25SS. US Electric Equivalent EZBN25
1/3hp 1725RPM 48/56Frame 115 volts Belt Drive Furnace Motor Century # GF2034
A.O. Smith B2979 2HP 2 Speed 230V C-Faced Threaded Shaft Motor
2-Speed 56J frame pool pump motor. Can also be used on any pump requiring a 56J frame motor. This is a full rated motor with a High Service factor. Amps are stated based on the full service factor. Stainless steel shafts, sealed ball bearings, switchless. Motor does not come with 2 speed switch. Motor has 4 threaded bolt holes on face for mounting the pump to the motor. Bolt holes are 5 7/8″ on center measured across the shaft. Wiring diagram on motor name plate.
Features:
- 230 volts 11.4/4.1 amps 60hz.
- Automatic Overload Protection – Service Factor 1.20
- C-Face Mount, Round Body-no base
- Non-Reversible – CCW Rotation facing the shaft
- 5/8″ diameter threaded shaft
2 hp 3450/1725 RPM 48Y Frame 230V 2-Speed Pool & Spa Electric Motor Century # BN61
Above ground swimming pool and spa motors. These are called Thru-Bolt mount motors as the pump mounts to the face of the motor with the motor thru bolts. 48Y frame motors thru bolt dimension is 5 1/8″ on center measured across the shaft. Shaft is 1/2″ diameter with threads on end. Motor has flat-rigid base welded to motor case. Wiring connection diagram on motor name plate. These motors are found on the Hayward Powerflo, Waterway, Aquaflo, Dynamo and many other above ground pool and spa pumps. 1 Year Manufacture Warranty. US Electric Equivalent SPH20FL2S
4 HP 3450/1725rpm 48Y Frame 230V 2-Seed Above Ground Swimming Pool/Spa electric-motors AO Smith #
Above ground swimming pool and spa motors. These are called Thru-Bolt mount motors as the pump mounts to the face of the motor with the motor thru bolts. 48Y frame motors thru bolt dimension is 5 1/8″ on center measured across the shaft. Shaft is 1/2″ diameter with threads on end. Motor has flat-rigid base welded to motor case. Wiring connection diagram on motor name plate. These motors are found on the Hayward Powerflo, Waterway, Aquaflo, Dynamo and many other above ground pool and spa pumps. 1 Year Manufacture Warranty.
Century Electric UST1072 3/4-Horsepower Up-Rated Round Flange Replacement Motor (Formerly A.O. Smith)
Product description
The A.O. Smith three-quarter horsepower round flange up-rated replacement motor for swimming pool pumps has a threaded shaft and fits most pumps that require a round flange motor. It operates on both 115 and 230-Volts. The UST1072 is compatible with Hayward Super, Super II, and Max-Flow pumps, Jacuzzi Magnum pumps, and Pentair Pinnacle pumps.
From the Manufacturer
The A.O. Smith three-quarter horsepower round flange up-rated replacement motor for swimming pool pumps has a threaded shaft and fits most pumps that require a round flange motor. It operates on both 115 and 230-Volts. The UST1072 is compatible with Hayward Super, Super II, and Max-Flow pumps, Jacuzzi Magnum pumps, and Pentair Pinnacle pumps.
Conclusion
By our suggestions above, we hope that you can found Ao Smith Motors Wiring for you.Please don’t forget to share your experience by comment in this post. Thank you!
